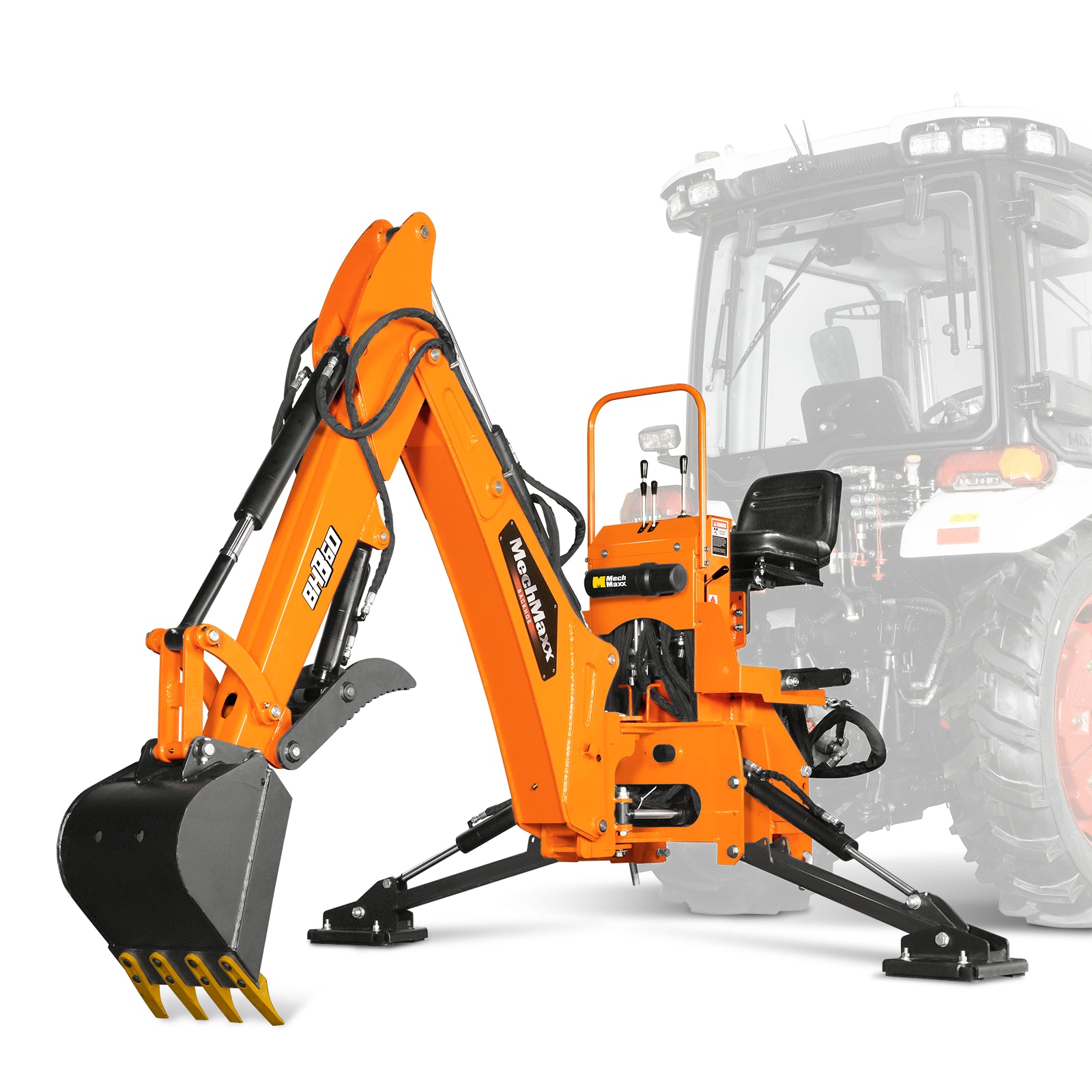

9′ Tractor Backhoe Attachment with Hydraulic Thumb, 15″ Bucket, Self-Contained Pump, for 25-100 HP, Cat. 1&2 Tractor, BH860

Max. Digging Depth
9 ft
Dipper Stick Cylinder Digging Force
2500 lbs
Digging Depth (two foot flat bottom)
8 ft 6 in
Hydraulic Volume Requirements
5 to 6 GPM
Swing Arc
180 Degrees
Hydraulic Pressure Requirements
2250psi
Loading Height (bucket at 60 °)
6 ft 1in
Hydraulic Tank Capacity
4.1 US Gal (15.5L)
Reach from Center Line of Swing Pivot
10 ft 8 in
Hydraulic Type Recommended
AW 46
Transport Height (maximum)
6 ft 2 in
Self-contained PTO Pump & Tank
Included
Bucket Rotation
180 Degrees
ISO or SAE Switch
Included
Loading Reach (bucket at 60 °)
4 ft 3 in
Standard Thumb
Hydraulic
Transport Overhang
5 ft 4 in
Standard Bucket Size
15 in (4 teeth)
Undercut
2 ft 2 in
PTO Speed
540 RPM
Stabilizer Spread (down position)
6 ft 7 in
PTO Connection
1-3/8″ 6 Spline
Stabilizer Spread (up position)
5 ft 9 in
Recommended PTO HP
25 to 100 HP
Stabilizer Spread (lifting height)
3 ft 8 in
3-Point Hitch
CAT I & II
Transportation Height (maximum altitude)
8 ft 9 in
Min Tractor Weight
3200 lbs
Loading Height (bucket at 180 °)
9 ft 10 in
Min Tractor Rear Lift Capacity
1518 lbs
Transport Overhang (maximum)
4 ft 5 in
Packing Size (LxWxH)
56 x 30 x 87 in
Bucket Cylinder Digging Force
3000 lbs
Weight with Bucket (N.W/G.W.)
1265/1373 lbs
Regarding tractor compatibility, ensure that the tractor’s PTO HP and 3-point hitch are compatible with the backhoe, and that it meets the minimum weight requirement for safe operation. If the tractor is too light, it can become unstable during travel or operation. To improve stability and reduce tipping hazards, add front ballast as needed. Additionally, take into account factors like speed and terrain slope. Above all, always prioritize safety during operation.

WARNlNG: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped),lead and lead compounds, mineral oils, soots, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s)  for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.
