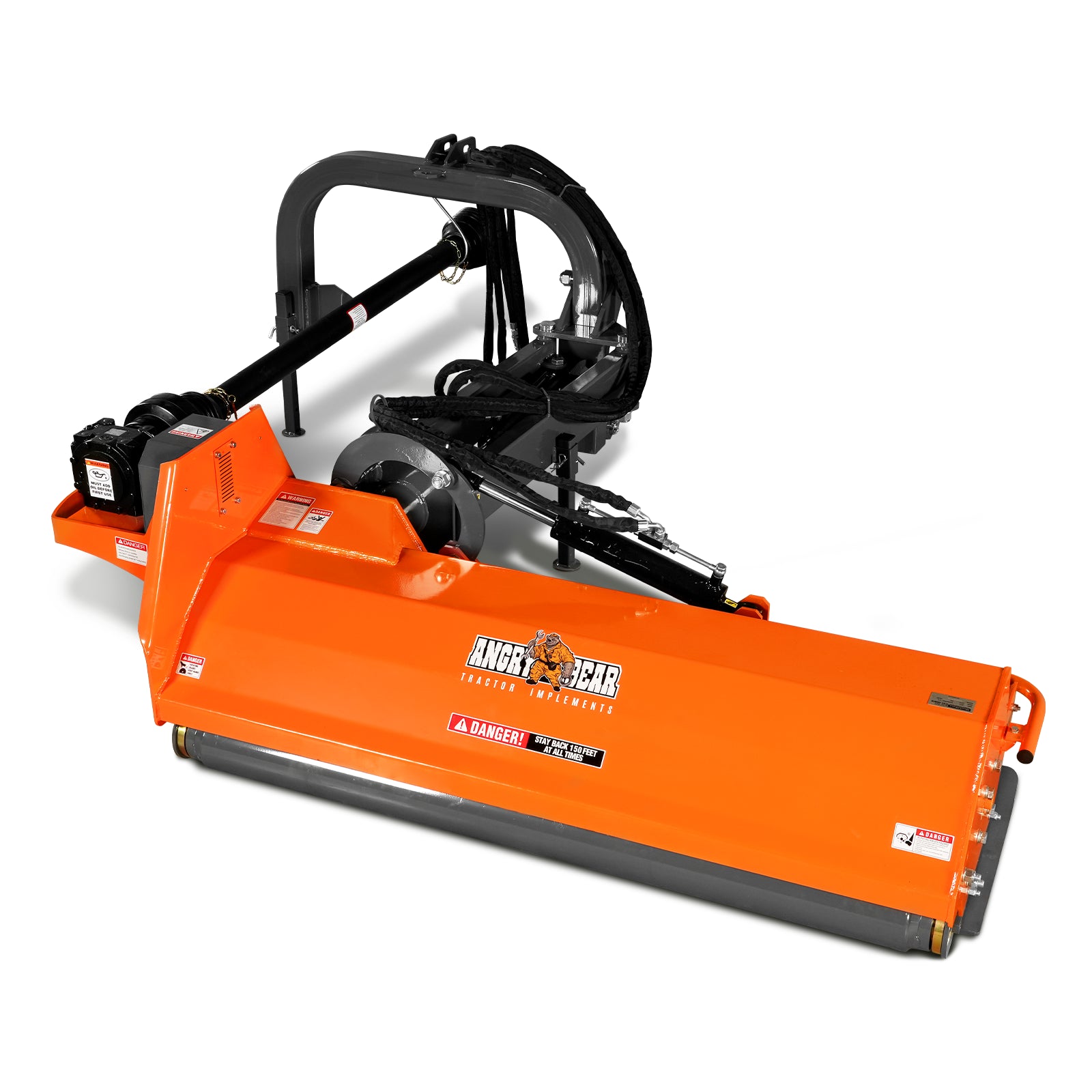

72″ Heavy Duty 3Point Offset Ditch Bank Verge Flail Mower Italy CMR Gearbox, 70-110HP, PTO Driven, AGF72

Power Required
70-110 Hp
Belt Adjustment
Bolt Tightening
Working Width
72 in
Working Efficiency450 cu.ft./Hr.
450 cu.ft./Hr.
Overall Width
86 in
PTO Shaft Speed
540 rpm
Blade Ground Clearance
0.5 in-2.6 in
Deck Thickness
2 in
Max. Cutting Diameter
Depends On The Type Of Grass
Side Plate Thickness
0.25 in
Offset Distance from The Center (Maximum)
111 in
Driveline Shaft Length
T6-LF-73  With Shear Bolt ; 73in-126in
Tilt-Up Angle
90°
Spline End
1.375in  Z6
Tilt-Down Angle
55°
3-Point Hitch
CAT 2
Number Of Blades
16
Gearbox 0il Type
85W-90
Number of Belts
4
Finish
Powder Coating
Blade Type
Hammer
Warranty
1 Year
Blade Weight
2.6 lbs
Shipping Box
89 X 39 X 31in
Blade Material
Cast Steel
Weight (N.W./G.W.)
1429 /1587 lbs
