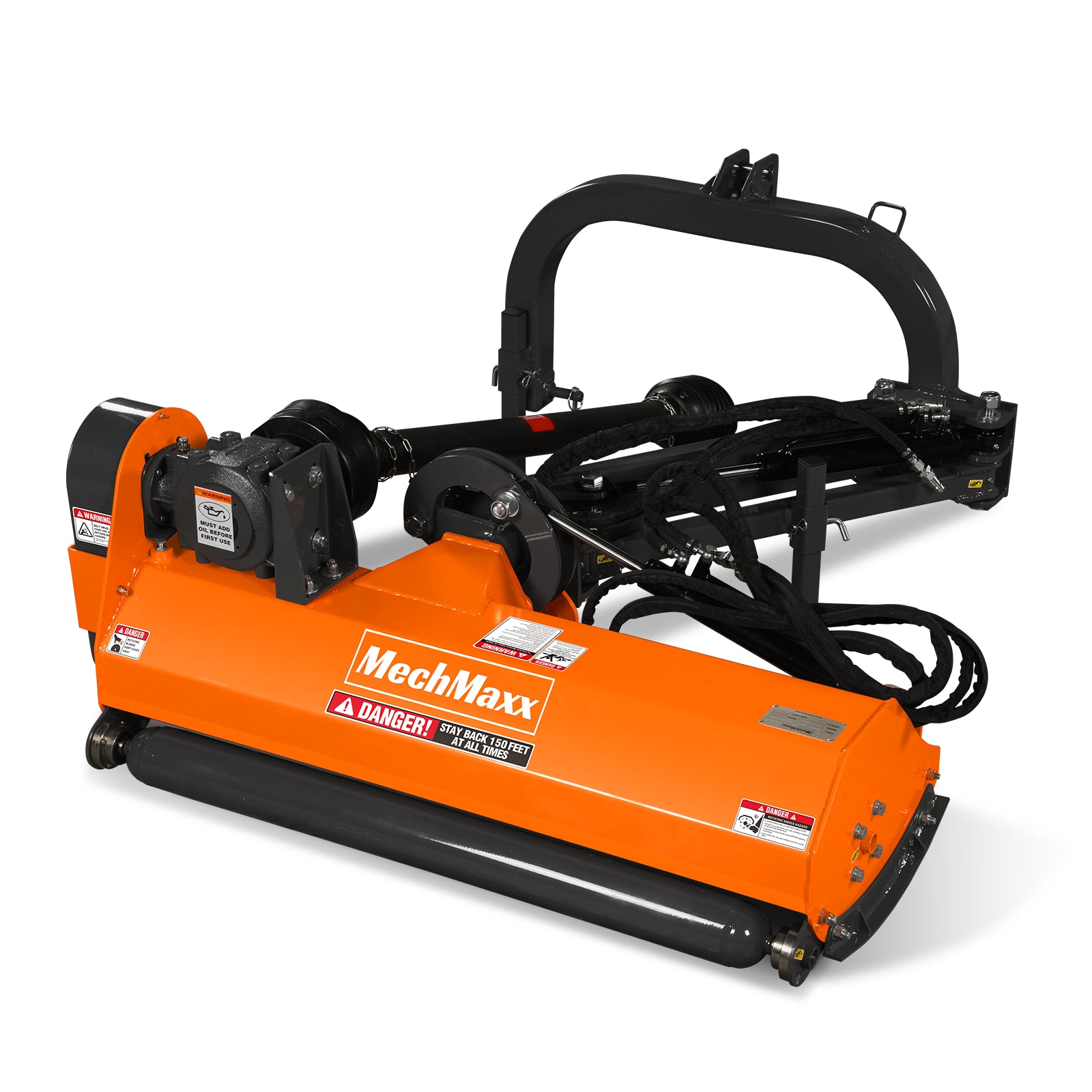

48″ Standard 3 Point Offset Flail Ditch Bank Mower, 25-50HP, VAM48

Power Required
25-50 hp
Rotor Shaft Speed
2356 rpm
Working Width
48in
Hydraulic Fittings Size
G1/2 in
Overall Width
56in
Hydraulic Hoses Quantity
4
Min. Blade Ground Clearance
0.6in
Drive Type
Belt Drive
Max. Cutting Diameter
Depends On The Type Of Grass
Spline End
1.375in  Z6
Offset Distance From The Center (Maximum)
69in
Driveline Shaft Length
T6-LF-63 With Shear Bolt ; 63-77in [05B-1600]
Tilt-Up Angle
90°
PTO Shaft Speed
540 rpm
Tilt-Down Angle
60°
Deck Thickness
0.16in
Number Of Blades
20
Side Plate Thickness
0.25in
Blade Type
Hammer
3-Point Hitch
CAT 1
Size of Blades
3.5 x 3.2 x 1.6in
Gearbox 0il Type
85W-90
Blade Weight
0.9 lbs
Number of Belts
3
Blade  Material
Cast Steel
Belt Size
V Belt 17 x 991
Rotor Bearing
SKF Bearing
Finish
Powder Coating
Rotor Diameter
4.3in
Warranty
1 Year
Blade Swing Diameter
14in
Dimensions (L x W x H)
56 x 27.5 x 28in
Rotor Thickness
0.3in
Weight (N.W./G.W.)
613/723 lbs
