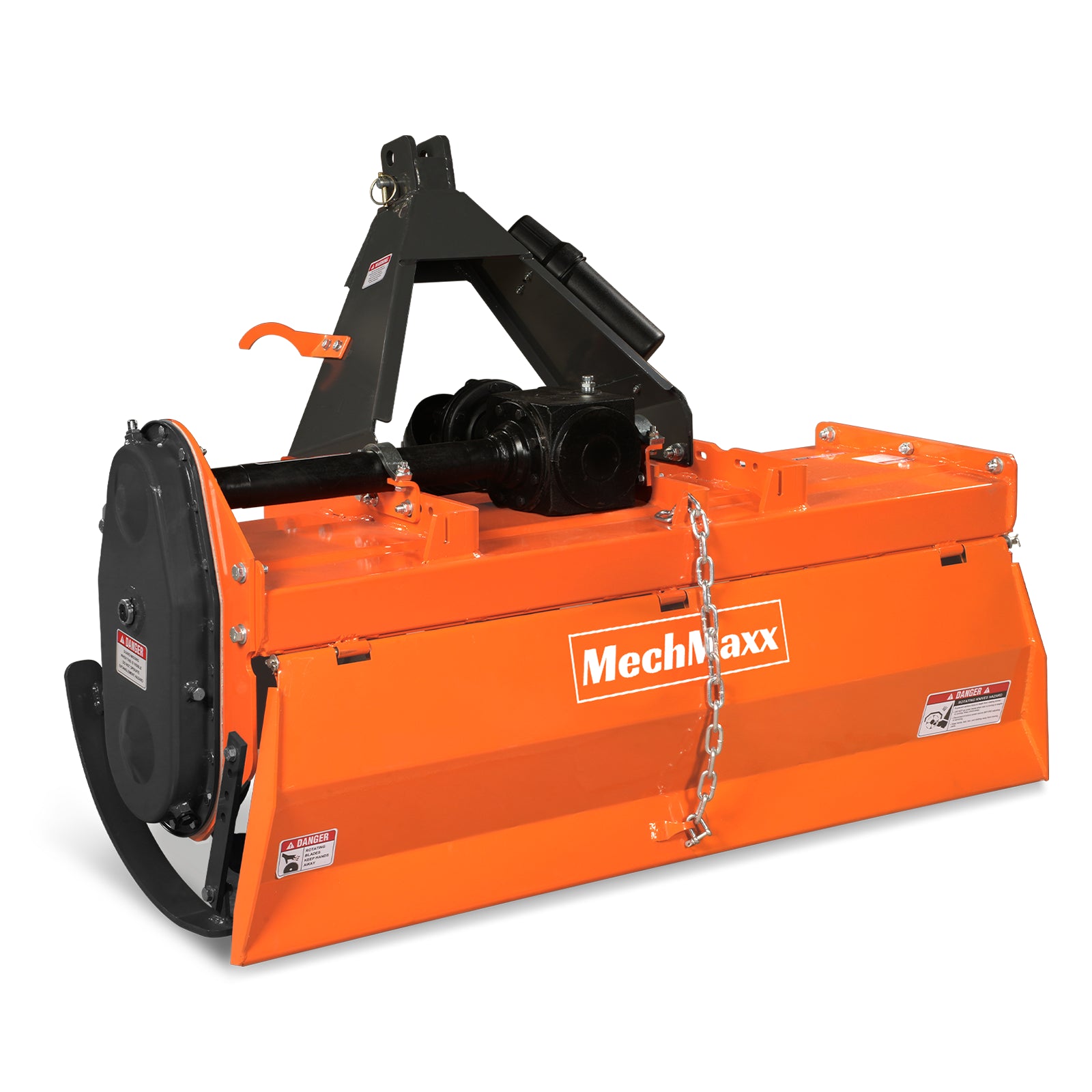

4.5FT 3-Point Gear Drive Rotary Tiller, 25-45HP Tractor, PTO Shaft Included (With Slip Clutch), Cat. 1 Hookup , RT450

Power Required
25-45HP
Main Gearbox
ASAE 1- 3/8″ – 6 spline shaft, proven cast iron, oil bath gearbox; ratio is 1.69:1
Working Width
53 in
Drive Gear Ratio
1:52:1
Overall Width
60 in
Gearbox Oil Type
SAE 85W-90
Working Depth
1in,2.1in,3.1in,5.1in
Deck Thickness
0.16 in
Number Of Flanges
6
Side Plate Thickness
0.31 in
Number Of Blades
30
PTO Shaft RPM
540 RPM
Blade Type
c type
PTO Shaft
T4-31in 8 Bolt non-removable slip clutch
Blade Material
60SI2MN
Spline End
1.375in X z6
Rotor Bearing
NSK bearing
3-Point Hitch
CAT 1
Rotor Diameter
3 in
Deflector
Rear Hinged
Rotor Swing Diameter
19.5 in
Finish
Powder Coating
Rotor Thickness
0.3 in
Dimensions (Lx W x H)
60 X 32 X 31 in
Rotor Shaft Speed
215 RPM
Warranty
1 year
Rotor Rotation
Forward
Net Weight
643 lbs
Drive Type
Gear Drive
Gross Weight
760 lbs
WARNlNG: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped),lead and lead compounds, mineral oils, soots, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s)  for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.
