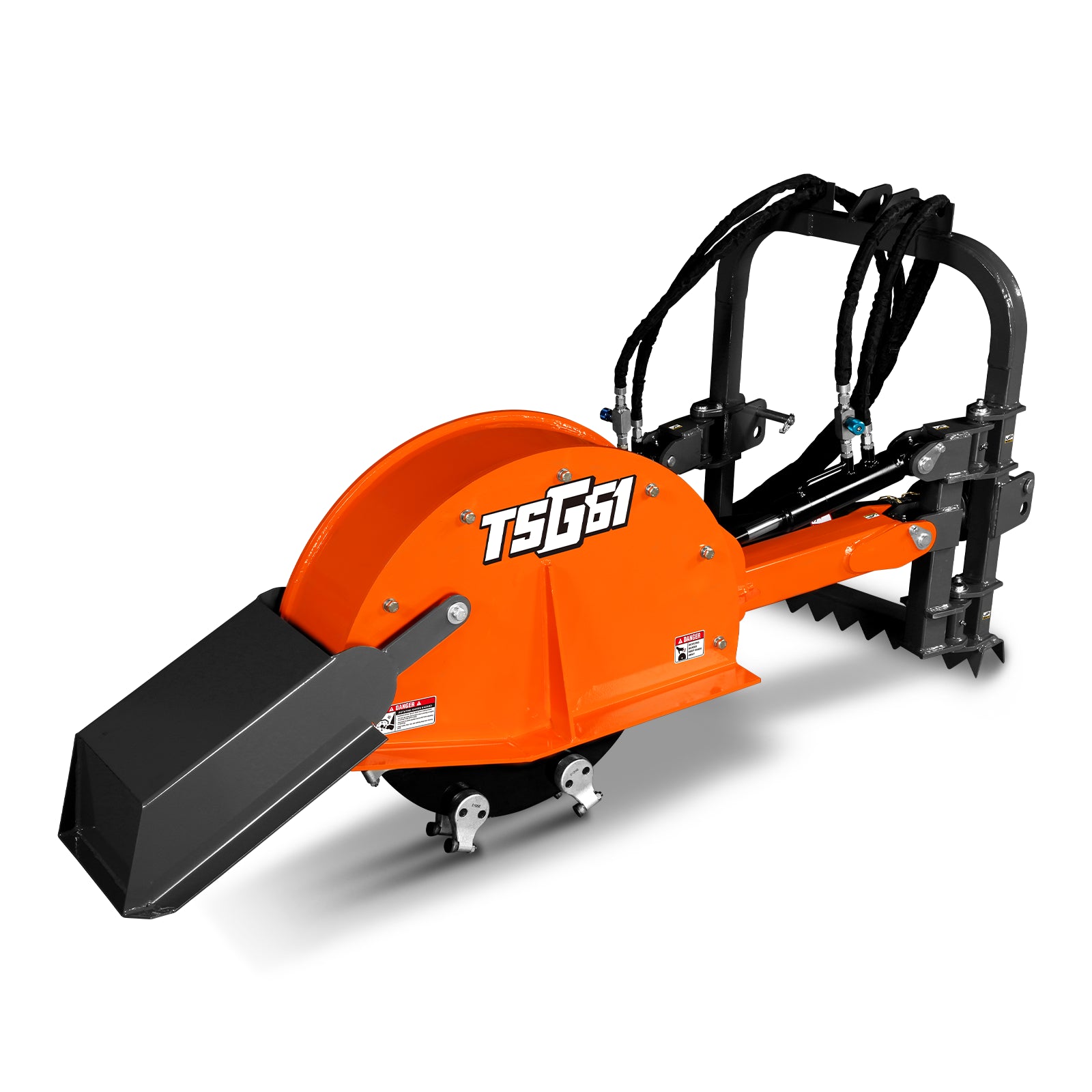

24” Cutting Wheel Hydraulic Cylinders Stump Grinder, (PTO Shaft Included with Slip Clutch) , 35-60hp, TSG61

Power Required
35-60 HP
Cutting Depth Per Pass
6 in
Hydraulic Flow Rate
5-13 GPM
Swing Arc
40°
Rotor Size
24 in
Cutting Direction
Horizontal and vertical
Carbide Steel Bolt-On Teeth
16 (Replaceable)
3-Point Hitch
Category 1& 2
Required PTO Speed
540 RPM
PTO Shaft
05B-LF-1600 With Slip Clutch 63-77 in
Hydraulic Hose Length
6.6 ft
Dimensions (L x W x H)
69 x 34 x 32in
Hydraulic Fittings Size
G1/2 in
Finish
Powder Coat Paint  Galvanized Steel
Cutting Height Above
18 in
Warranty
1 year
Cutting Depth Below
12 in
Weight (N.W./G.W.)
367/456 lbs
